M83513 D Shape Connector with Metal Body and High-Temperature Resistance for 9~144 Pin Applications

Brand Name : ZSX

Model Number : J30J-9TJL-A

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : Depending on the quantity

Payment Terms : T/T,D/P,Western Union

Supply Ability : 100000Pcs/Year

Delivery Time : 5-8 Days

Packaging Details : Carton packaging

Name : D Shape Connector

Gender : Male

Boday Material : Metal

Insulator material : PPS

Working temperature : -55℃~+125℃

Specification : 9~144 pins

Contact Now

M83513 D Shape Connector Customized Electronic Pin Connector 9 Pin - 144 Pin J30J-9TJL-A

Product Overview

M83513 Micro Rectangular Connector J30J-9TJL-A With Shielding Braid Cable Clipper

J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They adopt precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of 1.27mm. The product is compact in size. The casing is made of metal and comes in 12 specifications ranging from 9 to 144 pins. The insulator material adopts PPS to meet the requirements of high-temperature resistance and aerospace applications.

Plugs and sockets can be threaded locked, guided, and prevent misinsertion. The termination forms include crimping, direct insertion, bending insertion, and welding. Among them, the cross-sectional area of the crimped wire is 0.1mm² to 0.15mm², which is suitable for the interconnection of various electronic and electrical systems with high density, miniaturization, lightweight, and high reliability requirements.

Product Performance Specifications

Product Model	J30J-9TJL-A	Contact Resistance	≤10mΩ
Ambient Temperature	-55℃~+125℃	Insulation Resistance	≥5000MΩ
Vibration	10Hz~2000Hz 196m/s²	Medium Pressure Resistance	800V
Random Vibration	Power spectral density is 0.4G²/Hz and the root mean square value of the total acceleration rate is 23.1G	Mechanical Life	500 times
Impact	735m/s² 11ms	Rated Current	3 A

Product Images

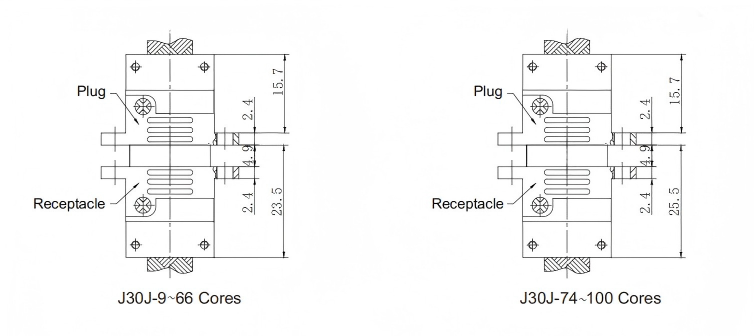

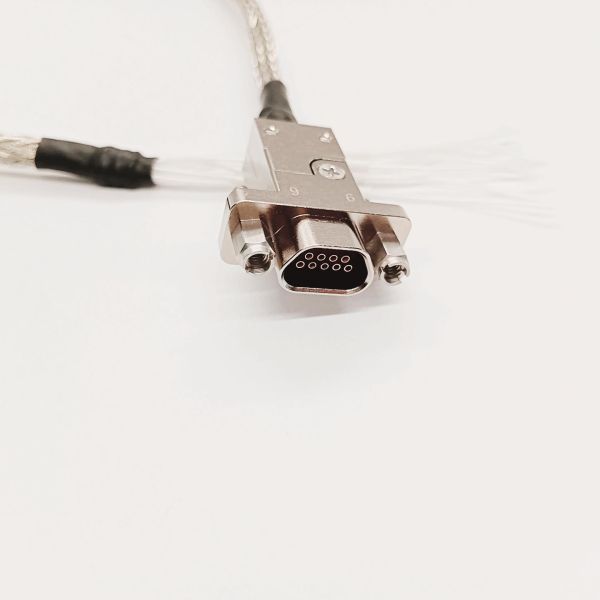

M83513 D Shape Connector with Metal Body and High-Temperature Resistance for 9~144 Pin Applications
